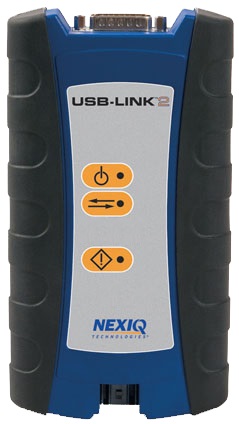

USB-Link™ 2: Wired Edition
Introduction
USB-Link™ 2: Wired Edition
USB-Link™ 2: Wired Edition
121033

Why pay for Bluetooth® or Wi-Fi technology when you don’t need it? The new USB-Link™ 2: Wired Edition provides a secure connection with all the same great features, and speed, as our wireless versions. And it’s compatible with the same wide range of OEM software applications too. A wired vehicle communication interface is also handy to have on hand when Internet connectivity is not available (for example, when you need to service a vehicle in the field, or in a remote part of your lot).

Rugged and dependable, the USB-Link™ brand has long been the industry leader in vehicle communication interface (VCI) technology. The USB-Link™ 2 VCIs come standard with sixteen times more random access memory than previous versions, and they support heavier bus loads on simultaneous channels.

The USB-Link™ 2 is also available with both Bluetooth and Wi-Fi.

Bluetooth Edition: PN 124032

Wi-Fi Edition: PN 124034

Specifications
Vehicle Network Protocol Support
CAN / J1939 / ISO15765 – 250K, 500 K, 1M b/s with Auto Baud detection (3 channels)
Single-wire CAN (SWCAN)
ISO 11898-3 Fault Tolerant CAN (FTCAN)
J1708
J1850 VPW (Class 2)
J1850 PWM (SCP)
ISO 9141 / KWP2000 (ISO 14230) K/L line
ALDL 9600 and 8192 baud
ATEC 160 baud
Operating System Support
Windows® Vehicle Communication API:
o RP1210 a/b/c
o 2534 (2004 draft)
o J2534-1 partial implementation (commercial vehicle focused)
Operating System Compatibility:
o Windows®
Interfaces to Computing Platforms:
o USB 2.0
Comes with the Following
Latching USB cable
9-pin Deutsch Adapter, 1 Meter
J1962 Adapter, 16-pin OBD II, 1 Meter
Carrying Case
Compatible Software
Detroit Diesel Diagnostic Link
CAT Electronic Technician (On-Highway only)
Cummins Insite
International - ServiceMAXX Fleet Pro
Hino eXplorer
Volvo PTT
VCAD Elite Mack/Volvo
V-MAC Service Tools
Allison DOC® For PC-Service Tool - Protocols Supported: J1939, J1708/J1587, and J1850
Allison DOC® For Fleets (1000/2000) - Protocols Supported: J1939, J1850
Allison DOC® For Fleets (3000/4000) - Protocols Supported: J1939, J1708/J1587
Eaton ServiceRanger
Bendix ACom
WABCO Toolbox
Freightliner ServiceLink
International ABS
International DLB
International Intune
International IPC v2.02
PACCAR DAVIE4
