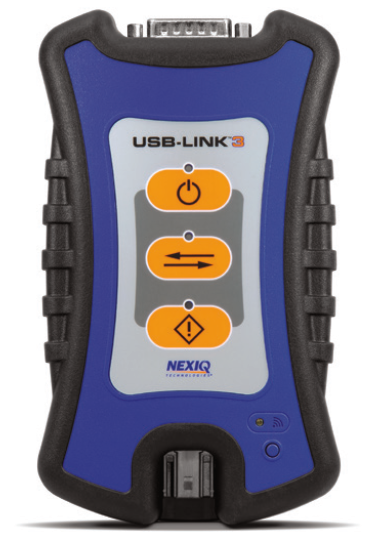

USB-Link™ 3: Wireless
Introduction
USB-Link 3
USB-Link™ 3: Wireless
121052

Designed for flexibility, the USB-Link 3 Wireless Edition connects to your PC, tablet, or smartphone via Bluetooth and Wi-Fi. In addition, the USB cable allows techs to directly connect to a PC when working in the field or during signal interruptions.

Built to support the latest protocols (CAN FD, DoIP) and compatible with a wide range of OEM diagnostics software, the USB-Link 3 is our most advanced VCI to date, with the performance and technology you can rely on well into the future.

The USB-Link™ 3 comes with the following:

* Latching USB Cable (PN 404032)

* 9-Pin Deutsch Adapter, 1 Meter (PN 493128)

* J1962 Adapter (16-Pin OBD II, 1 Meter (PN 491113)

A USB-Link™ 3: Wired Edition is also available (PN 121054).

Specifications
Vehicle Network Protocol Support
CAN FD / J1939 FD / ISO15765 FD - 250K, 500K, 1M b/s with auto baud detection
DoIP ISO 13400
Single wire CAN (SWCAN)
ISO 11898-3 Fault Tolerant CAN (FTCAN)
Diagnostics Over Internet Protocol (DoIP)
J1708
J1850 VPW (Class 2)
ISO PWM (SCP)
ISO 9141 / KWP2000 (ISO 14230) K/L line
ALDL 9600 and 8192 baud
ATEC 160 baud
Windows® Vehicle Communication API
Windows® Vehicle Communication API
RP1210 a/b/c
J2534 (2004 draft)
J2534-1 partial implementation (commercial vehicle focused)
Operating System Compatibility
iOS
Android™
Windows® 10, 11
Interfaces to Computing Platforms
USB 2.0 (vehicle-to-PC connectivity)
Bluetooth® 2.1 + EDR
Wi-Fi (dual band)
Compatible Software
Detroit Diesel Diagnostic Link
CAT Electronic Technician (On-Highway only)
Cummins Insite
International - ServiceMAXX Fleet Pro
Hino eXplorer
Volvo PTT
VCAD Elite Mack/Volvo
V-MAC Service Tools
Allison DOC® For PC-Service Tool - Protocols Supported: J1939, J1708/J1587, and J1850
Allison DOC® For Fleets (1000/2000) - Protocols Supported: J1939, J1850
Allison DOC® For Fleets (3000/4000) - Protocols Supported: J1939, J1708/J1587
Eaton ServiceRanger
Bendix ACom
WABCO Toolbox
Freightliner ServiceLink
International ABS
International DLB
International Intune
International IPC v2.02
PACCAR DAVIE4
Accessories

Bluetooth USB Adapter

405001

Bluetooth Adapter for Wireless Connectivity.

6 and 9-Pin Deutsch Adapter

493148

Standard adapter for most heavy-duty vehicles.

J1962 Adapter (16-Pin OBD II)

493013

16-pin J1962 (OBD II) adapter for use with the USB-Link™ 2 and USB-Link™ 3.

9-Pin Deutsch Adapter

493028

Standard 9-pin Deutsch for use with the USB-Link™ 2 and USB-Link™ 3.

9-Pin Deutsch Adapter, Locking

493001

9-pin Deutsch locking adapter for use with the USB-Link™ 2 and USB-Link™ 3.

9-Pin Deutsch Adapter, Locking (1 Meter)

493101

Standard 1 meter, locking 9-pin Deutsch adapter.

6-Pin Deutsch Adapter

494024

Standard 6-pin Deutsch adapter.

CAT 9-Pin Adapter

493015

9-pin locking adapter for use with older CAT engines.

9-Pin Deutsch Caterpillar T Adapter

493014

9-pin Deutsch Caterpillar "T" adapter for use with the USB-Link™ 2 and USB-Link™ 3.

DDEC Marine Adapter, Locking

493007

Locking adapter for use with Detroit Diesel marine applications.

Volvo 14-Pin Adapter

493022

14-pin adapter for use with Volvo trucks.

Volvo 8-Pin Adapter

493020

8-pin adapter for use with Volvo trucks.

26-Pin 1 Meter Data Cable

493126

26-Pin extension data cable for use with the USB-Link™ 2 and USB-Link™ 3.

3-Pin Deutsch, 2-Pin Cummins Adapter

493033

For use with Cummins engines with either a J1939 3-pin Deutsch or a 2-pin adapter.

Komatsu 12-Pin Adapter

499021

For use with the USB-Link™ 2 and USB-Link™ 3.

9-Pin Deutsch Adapter - 1 Meter

493128

Standard 1 Meter, 9-pin Deutsch for use with the USB-Link™ 2 and USB-Link™ 3.

J1962 Adapter (16-Pin OBD II) - 1 Meter

493113

1 Meter J1962 Adapter (16-Pin OBD II)
For Use With

eTechnician™ 2.12

859000

PC-Based Software Application
