NEXIQ Blue-Link™ Mini
Introduction
NEXIQ Blue-Link™ Mini
126015
SOFTWARE DEVELOPMENT KITS (SDKS) THAT ENABLE DEVELOPERS TO BUILD COMPATIBLE SOFTWARE APPLICATIONS ARE AVAILABLE IN THE DOCUMENTS & DOWNLOADS SECTION.

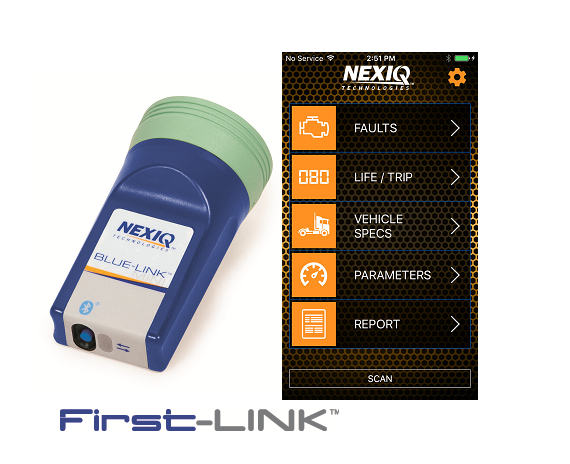

The NEXIQ Blue-Link™ Mini is a mobile vehicle interface that enables you to use either your iOS or Android devices (e.g., smartphones or tablets) to communicate with heavy duty vehicles for quick access to basic diagnostic information. It plugs into the vehicle’s diagnostic connector, and provides wireless communication with on-board electronic control units.

When used in conjunction with First-Link™, the new mobile app from NEXIQ Technologies, the NEXIQ Blue-Link Mini™ becomes a triage tool for drivers and service technicians of commercial vehicles and equipment.

The First-Link™ app provides features that help drivers connect their mobile devices to the vehicle’s diagnostic port; they also monitor the vehicle’s health status and increase the vehicle’s uptime. If, for example, a Check Engine Light is illuminated, the app assists the driver to understand the cause so that he can seek assistance if needed (i.e., service and repair). Later back at the shop, service technicians can utilize the information gathered by the application to aid in vehicle service and repair.

The First-Link™ app is available on both the App Store and on Google Play.

This product is obsolete.

Warning

This product has been superseded by:

EESM608A NEXIQ Blue-Link™ 2 --- Coming Soon ---

Specifications
Compatibility
In addition to the NEXIQ Blue-Link™ Mini, the First-Link™ mobile app is compatible with the NEXIQ Blue-Link™ and the USB-Link™2.
The NEXIQ Blue-Link™ Mini is also compatible with the DTNA eLink app for mobile devices (available on both the App Store and on Google Play).
Benefits
Inexpensive
Convenient
Small—fits in your pocket
Wireless—no cables required
Reliable Bluetooth communication
Fast—lets you quickly gather a snapshot of vehicle statistics
Features
Compatible with iOS and Android devices (pairs easily with both)
Provides the ability to export vehicle health reports generated by First-Link™ to Navistar's OnCommand® Connection.
Integrated 9-pin Deutsch connector
Simple, one-button design to put the device in Discovery mode
RP1227 support
Vehicle Network Protocol Support
J1708
3 CAN Channels (CAN / J1939 / ISO15765 - 250K, 1Mb/s with Auto Baud detection
Memory
RAM: 576 KB FLASH: 2.5 MB
Certifications
Wireless Certifications—FCC (US), IC (Canada), CE (European Union), TELEC (Japan), KCC (Korea)
EMC Certifications—EN 301 489-1:V1.9.2 (2011-09), EN 301 489-17:V2.2.1 (2012-09)
Safety Certifications—EN 60950-1:2006 (2nd Ed.) + Am 1:2010 + Am 2:2013
