eTechnician™: HDS and LMT
Introduction
eTechnician™: HDS and LMT
856000

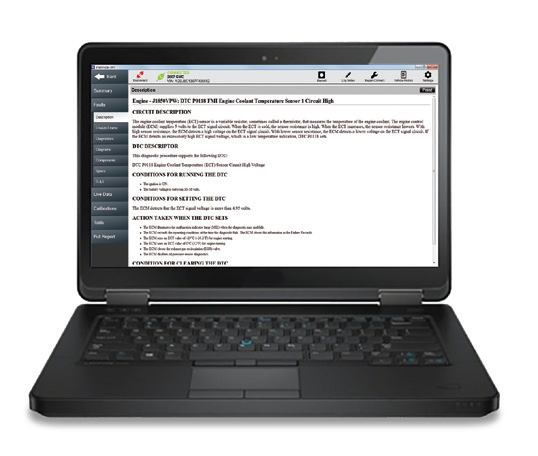

The eTechnician™ PC-based software application now includes both HDS and LMT. Packaged together for the first time, these essential modules create a diagnostic software application service technicians will depend on to keep trucks on the road. In fact, service bay technicians provided input during the design phase of the eTechnician intuitive user interface. Their first-hand knowledge and experience was incorporated into the eTechnican design, making it both easy to use, and easy to learn.

The eTechnician HDS module provides technicians with the ability to perform heavy-duty diagnostics using both J1708 and J1939 communication protocols on a PC platform. It includes comprehensive coverage for heavy-duty engines, transmissions, brakes, trailers, body controllers, instrument clusters, and emissions. Emission-related diagnostic capability for a wide range of light and medium-duty trucks is also available. And eTechnician HDS enables the technician to easily switch between each of the system elements.

The eTechnician LMT module provides diagnostic capability for engines, transmissions, and brakes on a wide range of light and medium duty trucks. And, it features hundreds of diagnostic tests, making it an important and valuable asset for service technicians. eTechnician LMT lets you easily switch between each of the elements of the system, saving both repair and vehicle down time. In addition, the application includes generic OBD II.

NOTE: eTechnician can be configured with Mitchell 1® Repair-Connect.net, which gives you instant access to diagnostic, fault-related service information. Subscription to Repair-Connect sold separately. Click here to navigate to the Mitchell 1® site.

Download a free, 14-day trial version today. See Documents & Downloads below.

Specifications
Features
Read Active Fault Codes
Read and Clear Inactive Fault Codes
Graph Parameters
Log Fault Codes and Parameters
Create Log Notes and Save to Vehicle History
Scans All Electronic Modules On the Vehicle (HDS)
Create Custom Parameter Lists (HDS)
View Engine, Brakes, and Transmission Data (LMT)
Includes Generic OBD II (LMT)
Note: eTechnician HDS does not clear fault codes on Caterpillar® electronic engines.
Vehicle Coverage: HDS
HDS provides support for a wide array of heavy-duty vehicles:
— Detroit Diesel
— Caterpillar (on highway)
— Cummins
— Mack
— Volvo
— Hino
— NAVISTAR
— Meritor WABCO
— Bendix
— Haldex
— Allison Transmissions
— Eaton
— Freightliner
— PACCAR
Vehicle Coverage: LMT
LMT provides support for a wide array of light and medium-duty trucks:
— Ford Engines
— — 6.7L Powerstroke (2011-2015)
— — 6.0L Powerstroke (2003-2010)
— — 6.4L Powerstroke (2008-2010)
— — 7.3L Powerstroke (2000-2003)
— — 5.0L (2011-2015)
— — 3.7L (2011-2014)*
— — 3.5L (2011-2015)*
— — 6.2L (2010-2015)
— — 6.8L (2000-2015)
— — 5.4L (2000-2015)
— — 4.6L (2000-2014)*
— — 4.2L (2000-2012)*
— — *Tests not available for these Ford engines.
— Ford Brakes and Transmissions
— — E250 - E450
— — F250 - F750
— GM Engines
— — 7.8L Duramax (2004-2009)
— — 6.6L Duramax (2001-2016)
— — 5.2L Duramax (2004-2009)
— — 6.0L (1999-07 and 2011-2016)
— — 4.8L (2011-2016)
— — 4.3L (2000 and 2014-2016)
— — 5.3L (2014-2016)
— — 8.1L (2000-2009)
— — 7.4L (1999-2000)
— GM Brakes and Transmissions
— — C1500 – C7500
— — K1500 – K3500
— — T4500 – T7500
— —P Chassis
— — W4 Chassis
— — Workhorse
— ISUZU Engines
— — 5.2L Duramax (2003-2012)
— — 3.0L Duramax (2011-2012)
— — 6.0L GM Gas (2011-2012)
— — 6.0L GM Gas (2003-2008)
— ISUZU Brakes and Transmissions
— — NPR/NF3
— — NQR/NRR
— Dodge/RAM Engines
— — 6.7L Cummins® (2007-2016)
— — 5.9L Cummins (2006-2007)
— — 5.7L HEMI (2006-2015)
— — 6.4L HEMI (2009-2015)
— — 3.6L V-6 VVT (2006-2015)
— Dodge/RAM Brakes and Transmissions
— — 2006 - 2015
LMT Diagnostic Tests
A complete list of supported tests and calibrations for the eTechnician LMT application is available for download (see Documents & Downloads below).
NOTE: Tests may not be available for all makes and models.
Disclaimer
Product specifications and data are subject to change without notice to improve functionality, reliability, design, or otherwise. Availability of tests and configurable parameters is dependent on both the vehicle concerned and the module loaded.
USB-Link™ 2 Kits Also Available
USB-Link™ 2: Bluetooth Edition (PN 626000)
— Kit Includes:
— — USB-Link™ 2: Bluetooth Edition
— — eTechnician: HDS and LMT
— — J1962 Adapter (16-Pin OBD II)
USB-Link™ 2: Wi-Fi Edition (PN 646000)
— — USB-Link™ 2: Wi-Fi Edition
— — eTechnician: HDS and LMT
— — J1962 Adapter (16-Pin OBD II)
eTechnician™ Licensing
Single PC license
Registered at time of use
Non-subscription
Operating System Requirements
Windows® 7 (32-bit & 64-bit)
Windows® 8 (32-bit & 64-bit)
Windows® 10 (32-bit & 64-bit)
Minimum PC Requirements
2 GB RAM
500 MB Free Hard Drive Space
i5 Processor (or equivalent)
DVD-ROM for program installation
1 available USB port
1024 x 768 monitor resolution
Accessories

USB-Link™

125032

This product is now obsolete. Recommended replacement is USB-Link™ 2.

J1962 Adapter (16-Pin OBD II)

493013

16-pin J1962 (OBD II) adapter for use with the USB-Link™ 2.
