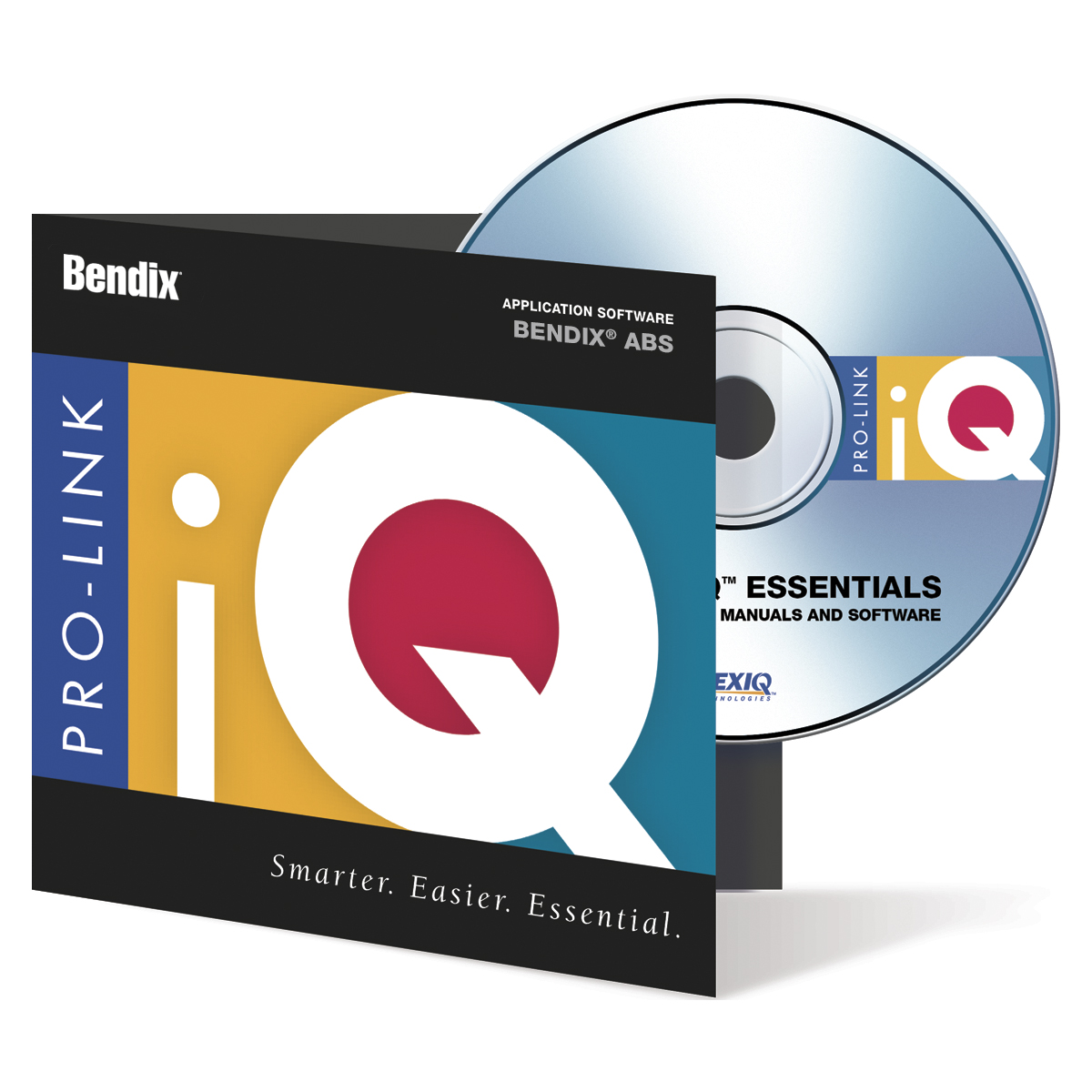

Pro-Link iQ™ Bendix ABS
889013
The Pro-Link iQ™ Bendix ABS software application provides the capability to test and diagnose vehicles using Bendix® EC-16™, EC-17™, EC-30™, EC-60™ (i.e., ABS 6), EC-30™ T, and TABS 6 systems. With the combined power of the easy-to-use Pro-Link iQ™ and the functionality of the software application for Bendix® ABS, service bay technicians experience unprecedented out-of-the-box productivity.

Note: Universal J560 PLC Adapter required for trailer brake PLC systems (PN 604020).
Specifications
Basic Functions
Read Active Fault Codes
Read and Clear Inactive Fault Codes
View Brake Data
Diagnostic Tests: Bendix® EC-30™ System
Test ATC Valve
Traction Control Enable/Disable
Pulse Modulators (Manual)
Modulator Sequence Test
Test Modulators
Retarder Relay
Lamp Test: ABS Warning Lamp
Lamp Test: ATC Warning Lamp
Lamp Test: Trailer ABS Warning Lamp
ECU LED Test
Sensor Sequence Test
Load Battery Voltage Test
Serial Retarder Test
Torque Limit Test
Self Configuration
Reset ECU
Diagnostic Tests: Bendix® EC-60™ (ABS 6) System
Test Inputs
Test Outputs
Valve Cycle Tests
Write TSC1 Torque Limit
Sensor Sequence Test
Modulator Sequence Test
Load Battery Voltage Test
Reset ECU
Diagnostic Tests: Bendix® TABS 6 System
Modulator Sequence Test
Test Modulators
Warning Lamp Test
Reset ECU
