NEXIQ Blue-Link™ 2
Introduction
Blue-Link 2 CGI

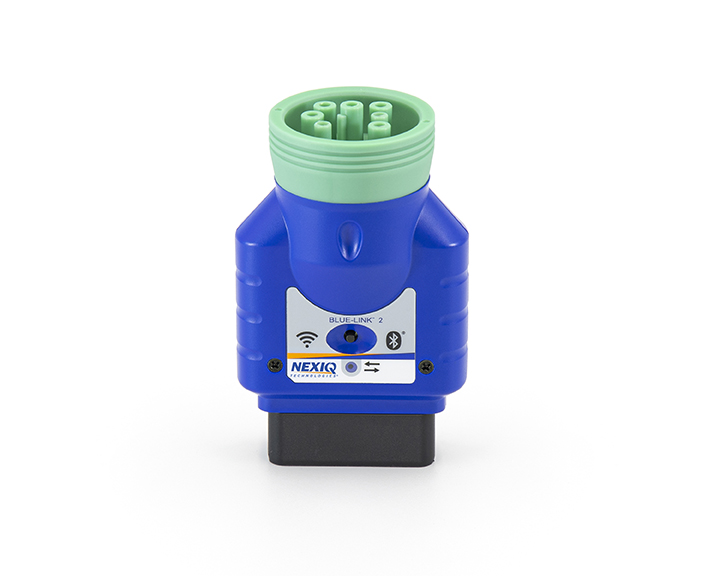

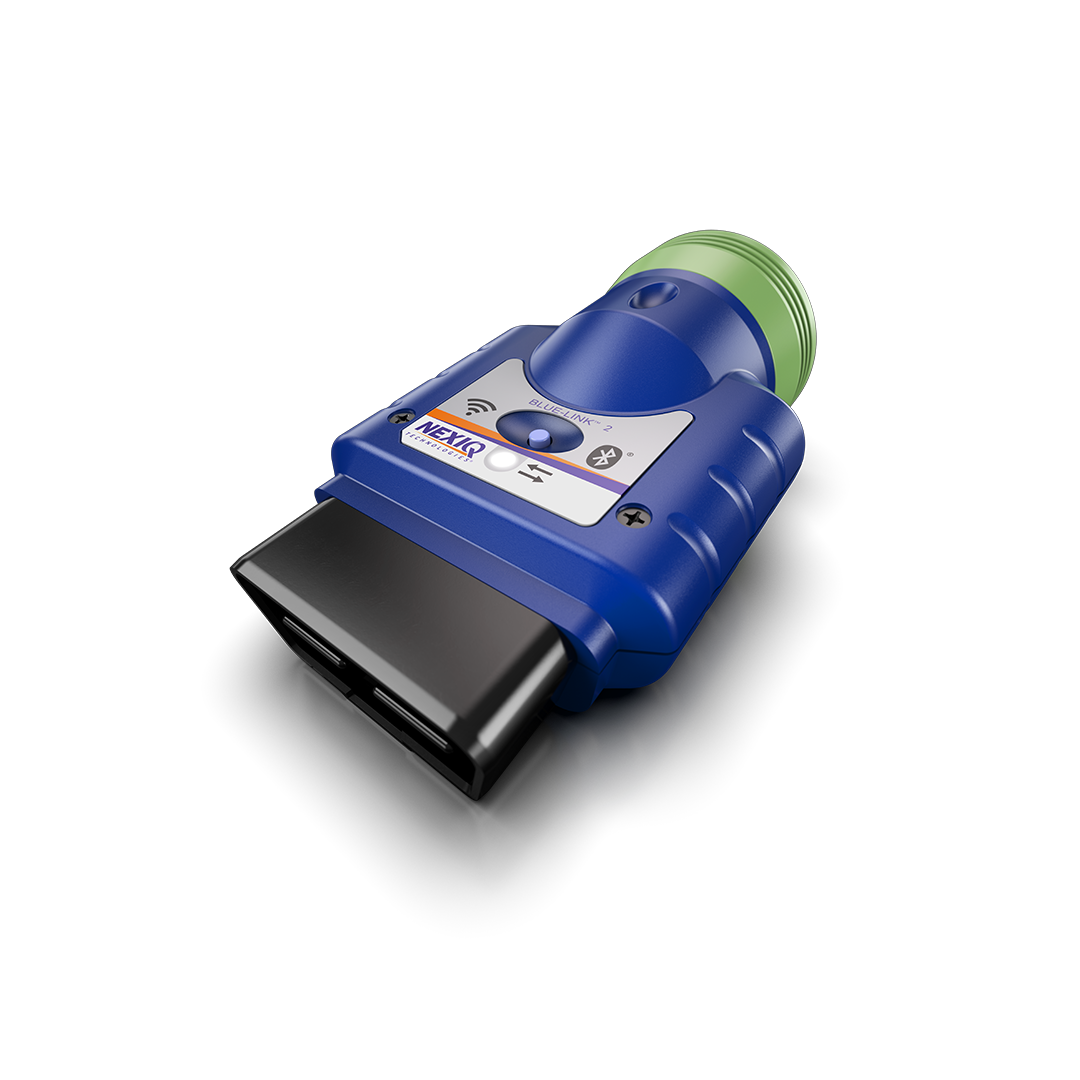

NEXIQ Blue-Link™ 2
EESM608A

The Blue-Link™ 2 is an incredibly convenient and easy-to-use mobile vehicle interface that enables users to seamlessly communicate with heavy-duty vehicles for quick access to basic diagnostic information. When used with the First-Link™ app, the all-new Blue-Link™ 2 becomes a triage tool for truck drivers on the road or service writers checking in vehicles at a repair facility.

Providing greater throughput than its predecessor and easier connectivity to iOS, Blue-Link™ 2 is more powerful in supporting the development of iOS and Android solutions for communicating with vehicles. This advanced mobile vehicle interface also supports CAN FD protocol and includes Wi-Fi connection capability.

Specifications
The First-Link™ App Is Available on the App Store and on Google Play
Benefits
Inexpensive
Convenient
Small—fits in your pocket
Wireless—no cables required
Reliable Bluetooth communication
Fast—lets you quickly gather a snapshot of vehicle statistics
Features
Compatible with iOS and Android devices (pairs easily with both)
Provides the ability to export vehicle health reports generated by First-Link™ to Navistar's OnCommand® Connection.
Integrated 16-pin and 9-pin Deutsch connectors
Simple, one-button design to put the device in Discovery mode
RP1227 support
Vehicle Network Protocol Support
J1708
3 CAN FD Channels (CAN / J1939 / ISO15765 - 250Kb/s, 500Kb/s 1Mb/s)
Singe wire CAN
ISO9141 / KWP2000 (ISO14230) K & L line
Connections
Blue-Link - Bluetooth 5.0 LE and Classic
Wi-Fi - 802.11 a/b/g/n/ac
Specs
6v - 32v Operating range
